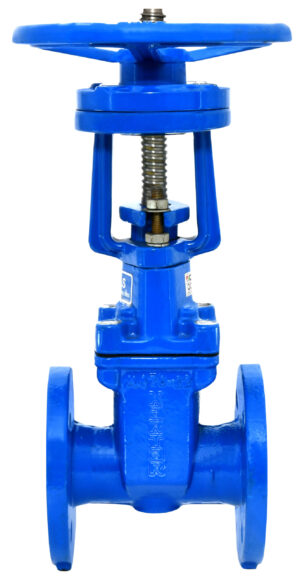

KARTAR D.I RESILIENT SEATED GATE VALVE - RISING WITH HW (K511R)

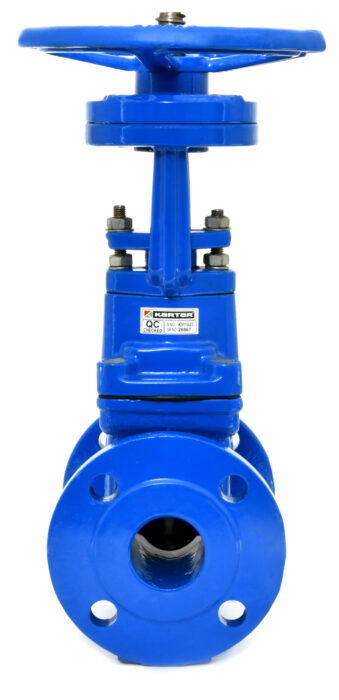

KARTAR D.I RESILIENT SEATED GATE VALVE - RISING WITH HW (K511R) - Image 2

KARTAR D.I RESILIENT SEATED GATE VALVE – RISING WITH HW (K511R)

Designed with a rising stem configuration, this ductile iron gate valve offers immediate visual indication of open or closed status, making it ideal for safety-critical pipelines. It combines a premium rubber-lined wedge (EPDM or Nitrile) with a pocketless flat bottom to deliver a 100% leak-proof, vacuum-tight seal, while its heavy-duty fusion-bonded epoxy coating provides maximum protection against corrosion.

KEY HIGHLIGHTS

  • Clear operational tracking via a rising stem configuration paired with handwheel operation
  • Built to global standards including BS 5163, DIN 3202, EN 1171, and IS 14846
  • Vacuum-tight, 100% leak-proof isolation via a fully rubber-lined EPDM or Nitrile wedge
  • Premium Fusion Bonded Epoxy Coating (RAL 5005, minimum 250 microns) inside and out
Request a Quote
Request Datasheet

Applications Suitable for

  • Potable Water Distribution and Main Supply Lines
  • Fire Protection and Sprinkler Infrastructure
  • Industrial Process Utilities and Plant Piping
  • HVAC and Cooling Water Systems

Size And Specifications

  • Size Range: 40 mm to 1000 mm
  • End Connection: Flanged ends with drilling as per IS 1538 / IS 9523
    (Customizable to customer requirements)
  • Body Material: Ductile Iron (IS 1865 / ASTM A536)
  • Pressure Rating: PN 10, PN 16, PN 20
  • Coating: Fusion Bonded Epoxy Coating (RAL 5005), minimum 250 micron thickness
  • Wedge Type: Fully Rubber Lined Wedge (EPDM / Nitrile coating)
  • Stem Configuration: Rising Stem with Handwheel (HW)
  • Design Feature: Pocketless Flat Bottom Layout

Quality Standards

  • High-grade ductile iron structure ensuring excellent impact strength and pressure resilience
  • Clear visual stem placement for reliable manual tracking and streamlined system monitoring
  • Thorough hydrostatic testing across all shell and seat configurations to confirm absolute tight shut-off

Hydrostatic Test Pressures

  • PN 1.0 Rating: Shell: 1.5 MPa | Seat: 1.0 MPa
  • PN 1.6 Rating: Shell: 2.4 MPa | Seat: 1.6 MPa
  • PN 2.0 Rating: Shell: 2.0 MPa | Seat: 2.0 MPa
